Explain radiation monitoring through film darkening over time and distinguish radiation types using filters.
Identify the ethical consequence of a stated treatment risk or of withholding treatment; use the supplied complications and benefits.
Justify the stated imaging safety choice by linking X-rays to ionization and possible harm to the developing fetus.
Match measuring instruments to both scale and resolution: a sufficiently long ruler for wire length and a micrometer or caliper for diameter.
Choose an additional mass or equilibrium-temperature measurement that completes the stated calorimetry experiment.
Read measurement precision from the displayed mass digits and use the stated accepted division or half-division convention.
Control reading bias: use the mirror to reduce parallax and subtract the signed closed-jaw reading when correcting a caliper zero error.

Covered syllabus points

S1.1.1—Safety and ethics S1.1.2—Measurement variables

Exam points

Explain how photographic film darkens with radiation to monitor exposure over time; filters distinguish radiation types.
Use the stated treatment risks to identify an ethical trade-off between complications and untreated cancer spreading or causing pain.
For the stated fetal-imaging comparison, link X-rays to ionization and possible tissue harm; moving images alone earns no credit.

[Maximum number: 4]

This question is about the use of radioactive isotopes.

(a)

Radiologists working with radioactive sources wear a film badge. Discuss the function of a film badge.

[ 3 ]

(b)

One of the side effects of the use of Sr -89 is the reduction of white blood cells in the body, leaving the patient prone to infections. Outline one ethical implication of the choice between using Sr-89 to treat bone cancer and not carrying out treatment.

[ 1 ]

Exam points

Use the mirror behind an analogue pointer to avoid parallax when reading its scale.
For the stated calorimetry setup, identify a required mass or final equilibrium temperature; an extra incorrect measurement can lose the mark.
For a 462 mm wire, specify a half-metre or metre ruler, or millimetre-graduated tape; a bare ruler is insufficient.
Measure the thin wire diameter with a micrometer or vernier caliper rather than a ruler.
Read mass precision from the displayed decimal places: 1.427 g indicates 0.001 g; the stated scheme also accepts half a division.
Subtract the closed-jaw zero reading from the caliper reading: 20.6 - (-0.3) gives a diameter of 20.9 mm.

[Maximum number: 2]

A student determines the resistivity $\rho$ of a metal that is in the form of a cylindrical wire. The student makes the following measurements:

\text { Length } L \text { of the wire }=(462 \pm 2) \mathrm{mm}

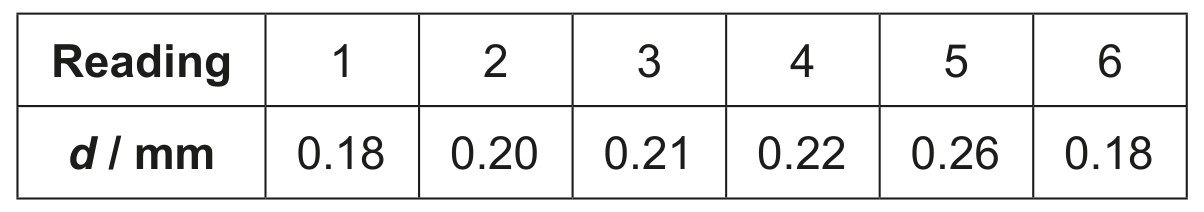

Readings for the diameter d of the wire:

\text { Resistance } R \text { of the wire }=13.7 \Omega \pm 1.5 \%

(a)

Suggest suitable instruments for the measurement of

[ 2 ]

(i)

$\quad L$

[ 1 ]

(ii)

[ 1 ]
